Construction works   JK drilling JKCS300 truck mounted DTH water borewell auger water well drilling equipment

1 Set
MOQ
Construction works   JK drilling JKCS300 truck mounted DTH water borewell auger water well drilling equipment
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Construction works , Energy & Mining
Condition: New
Type: DTH drilling or Mud rotary drilling
Power Type: Diesel
Usage: Drilling Wells
Voltage: 24V
Dimension(L*W*H): 11000*2480*7147mm
Weight: 8000kgs excluding truck
Warranty: 1 Year
After-sales Service Provided: Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
인증: ISO CE
Drilling diameter: 105-350(mm)
Drilling depth: 300m
Working air pressure: 1.05-3.05MPa
Air consumption: 16-35m3/min
Drilling pipe length: 3m, 4.5m
Gradeability: 15°
Max. lifting force: 15T
Lifting height: 8m
Max.rotation torque: 8500N.m
Speed of rotary head: 0-80rpm; 0-160rpm
기본 정보
인증: ISO CE
결제 및 배송 조건
Packaging Details: Nude package for drilling rig,other spare parts in plywood cases
Supply Ability: 10 Set/Sets per Month
제품 설명
JK Drilling
Product Description

Product Application

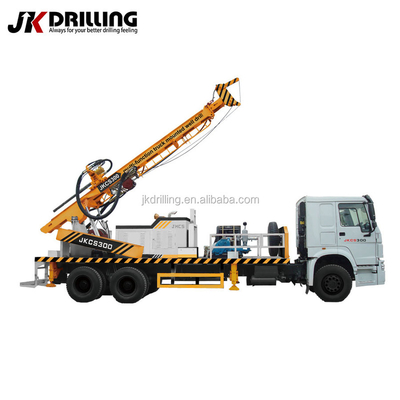

JKCS300 is a new, efficient and multifunctionatruck mounted well drilling rig, mainly applicable to all kinds of drilling process of water wells, monitoring boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project.

JKCS300 is equipped with powerful hydraulic motor, heavy-duty hydraulic mast and high pressure DTH hammer, and its drilling speed is faster than other type of rigs.

Generally speaking, the penetration speed being dozens of times quicker than conventional mud pump type rigs

Specifications
The chassis can be customized according to customer's requirements
Detailed Images

JKCS300 at working site

Water Is Life

Comparison
Our Service

1. Pre-sale service.

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.
1> Select suitable model & matched equipment.
2> Strong technical support. Reply clients' questions within 24 hours.

2. Service during the sale.

We have responsible team from raw material to finished products, and guarantee 100% pass rate.
1> Design and manufacture products basis of client's special requirement
2> Inspect each machine & matched accessories strictly before delivery
3> Timely inform client of production progress.

3. After-sale service.

We're always with you in after-sale service.
1> We can arrange related after-sales representatives for debugging and training at worksite when starting up.
2> E-mail, call or door-to-door service in later using.
